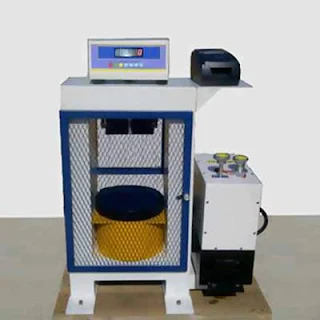

Compression Testing Machine 3000 Kn Digital Print Out
Call
| Product Details | |
| Brand | Lokal |
| Kegunaan | CONCRETE |
| Garansi | Ya |
| Type | 3000 Kn Print Out |
| Stock |
Available
|
DIGITAL COMPRESSION MACHINE
UNTUK PENGETESAN SEMPEL KUBUS 15 CM DAN SILINDER BETON 15 x 30 CM
ACUAN STANDAR : ASTM C39 | SNI 1974 : 2011 | SNI 03-1974-1990 | SNI 03-6825-2002
FRAME
Bahan : Baja
Dimensi : 55,5 x 30 x 153 (PxLXT)
Tebal Frame : 12 Cm
Diamenter : silinder 30 cm
Diamenter : Piston 23 Cm
HIDROLIK
220 V 700 Watt 1 phase
Hidrolik single action
Manual Variable speed
Manual open close valve
Kapasitas Oli 8 Liter
Tekanan Maksimal 10.000 psi
INDICATOR
7 Segment
Akurasi 1 Kn
Rs232 Data akuisisi system (Opsional)
Print Out (Opsional)
Kalibrasi oleh KAN/ISO17025
Frame : Heavy-duty welded steel construction 30 cm profile steel columns 10 thick bottom and upper plate.
Hydraulic System : Cast iron cylinder, Hard-chromed piston, 230 mm diameter working pressure 50.000 kPa Overall dimension 300 mm dia. x 320 mm height Single action, gravity return
Hydraulic Pump : Electric, 220 V AC, 50-60 HZ, 1000 Watt, 1 Phase Single action,variable speed 6.000 ml reservoir capacity Maximum working pressure 50.000 kPa Single action, gravity return.
Force Gauge : Bourdon tube manometer, 280 mm dial diameter With maximum load pointer. Steel box housing.Calibrated by KAN.
Compressive Platen : Upper : 180 x 180 mm, ball seating Lower : 250 mm diameter.
Clearance : Horizonta l: 290 mm Vertikal : 310 mm .
Kapasitas
1500 Kn, 2000 Kn, 3000 Kn
Order the product immediately Compression Testing Machine 3000 Kn Digital Print Out by contacting the Shop admin via WhatsApp or SMS / Phone on the button beside, please include the Item Code or Item Name when ordering items. Goods are shipped the day after the transaction is completed.
